Multi-Axis Ultrasonic Inspection System for Composite Shells

This system was custom-designed for the inspection of composite shells using specially built Dry Coupled Ultrasonic Probes, which were developed in-house.

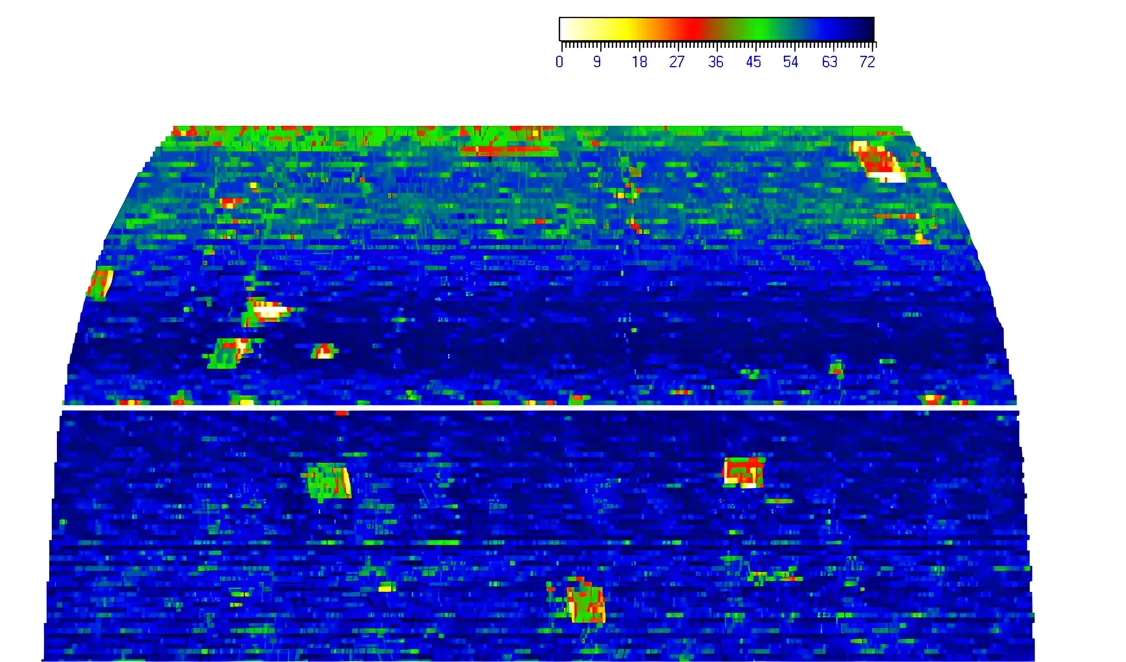

The inspection results are presented in C-Scan image format, enabling users to quickly analyze defect parameters such as length, location, and area.

Its multi-axis mechanism ensures complete coverage of complex shell geometries with consistent contact and accuracy.
